1 in. Carbon Steel Ball Valve, 2000 PSI WOG (949125)
1 in. Carbon Steel Ball Valve, 2000 PSI WOG (949125)
Availability & shipping
Available to ship
Shipping charges are shown at checkout. Larger sizes may ship by freight.
Key specifications
- Manufacturer
- Midland Industries
- Manufacturer part number
- 949125
- Size
- 1 in
- Connections
- Female NPT × Female NPT (FPT × FPT)
- Body
- Carbon Steel
- Construction
- 1-Piece
- Pressure rating
- 2000 psi WOG
Order multiple sizes
Enter quantities for any sizes, then add them to your cart together.
Available sizes typically ship within 1–2 business days. Backordered sizes may be ordered, but their shipping date is not currently confirmed.
Enter a quantity and add one size at a time.
| Size | Configuration | Availability | Price | Quantity |
|---|---|---|---|---|
| 1/4 in. | Female NPT × Female NPTFPT × FPT | Available to order — ship date not confirmed | $48.99 | |
| 3/8 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $47.99 | |
| 1/2 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $53.99 | |
| 3/4 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $52.99 | |
| 1 in. This page | Female NPT × Female NPTFPT × FPT | Available to ship | $64.99 | |
| 1-1/4 in. | Female NPT × Female NPTFPT × FPT | Available to order — ship date not confirmed | $152.99 | |
| 1-1/2 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $170.99 | |
| 2 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $225.99 |
No sizes selected
Product overview
The 1 in. one-piece carbon steel ball valve (part 949125) has an ASTM A216 WCB carbon steel body, a stainless steel ball, a 304 stainless steel stem and PTFE seats and seals. Rated 2000 psi WOG with female NPT threads on both ends. Standard port in a one-piece body.
Technical Specifications
| Manufacturer Part Number (MPN) | 949125 |
| Nominal Size | 1 in. |
| Valve Type | One-piece ball valve, carbon steel, standard port |
| End Connections | Female NPT × Female NPT (FPT × FPT) |
| Pressure Rating | 2000 psi WOG |
| Temperature Range | −60°F to 450°F |
| Body Material | ASTM A216 WCB carbon steel |
| Port | Standard port |
| Operation | Quarter-turn handle |
Dimensions and construction

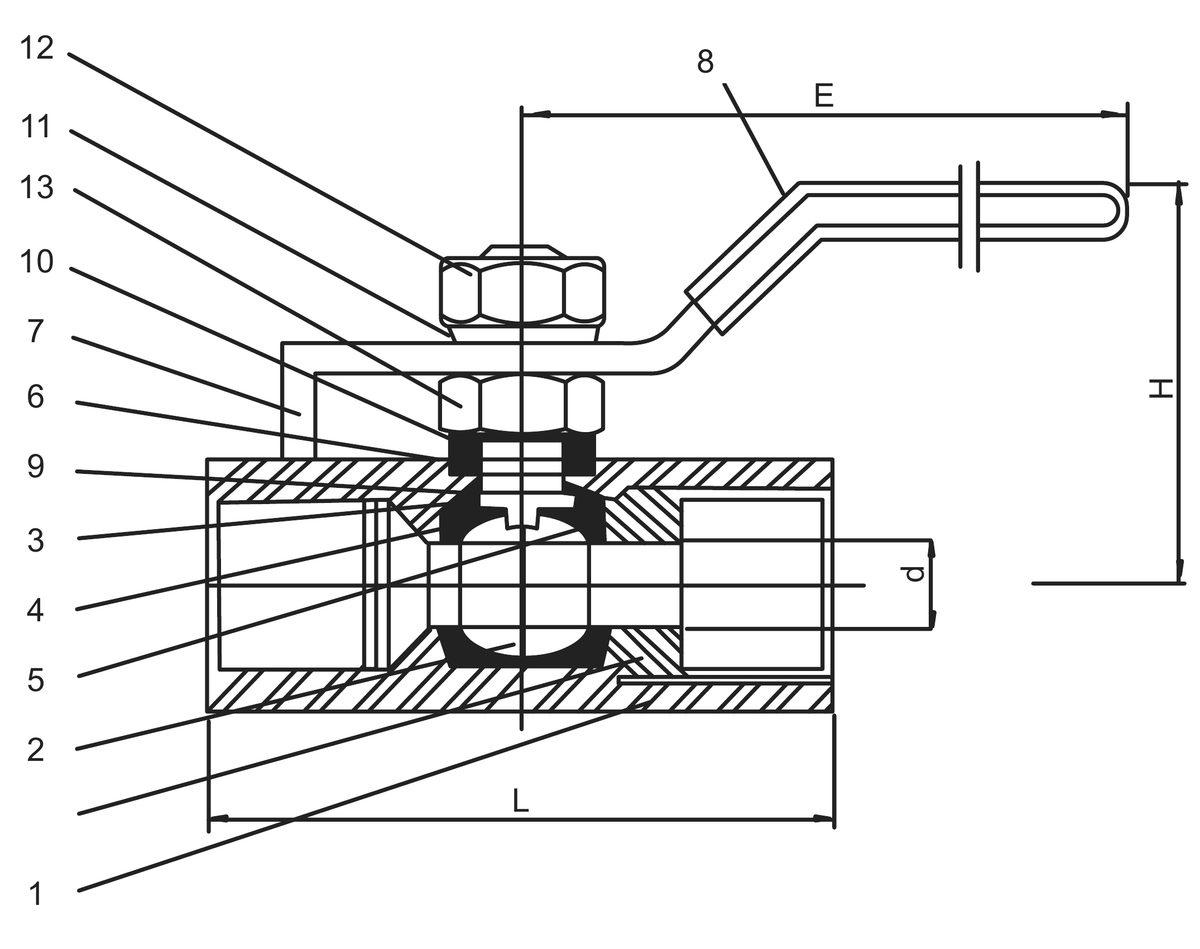

Dimensions for this size (1 in)
| Letter | Dimension | Inches |
|---|---|---|
| d | Bore diameter | 0.59 |
| L | End-to-end length | 3.19 |
| H | Inlet centerline to top of handle | 2.95 |
| E | Stem centerline to handle end | 5.00 |
Dimensional drawing: values shown are for the selected size. Manufacturer dimensions may change without notice; confirm critical dimensions before ordering.
Materials of Construction
| Body | ASTM A216 WCB carbon steel |
| Ball | Stainless steel (grade: spec sheet available on request) |
| Stem | 304 stainless steel |
| Seats, Seals & Packing | PTFE |
| Handle | 304 stainless steel with vinyl grip |
| Gland, Washer & Stem Nut | 304 stainless steel |
Performance & Testing
- Blow-out-proof stem design, per the Midland catalog
- Air tested under water at 100 psi in the open and closed positions, per the Midland catalog
- Standard port in a one-piece body
Service suitability
Media suitability depends on the specific fluid, concentration, temperature, pressure and seat/seal materials — tell us your service conditions and we will confirm suitability with the manufacturer. Allowable pressure decreases as temperature rises; confirm the pressure rating at your operating temperature with us before ordering.
Manufacturer-listed interchange numbers
- 25CSTH05M
- BV-105-1
- BVCS2103H
- BVCS2103-H
- DBVCS2103F
- DBVCS2103-F
- SV58B74010
Manufacturer-listed references; confirm dimensions and service requirements before substitution. Replacing one of these? Send us the part number and we will confirm the match.
Compare related series
Documents and technical resources
Confirm this valve for your service
Send us the details below and the Apex Flow Solutions technical desk will check suitability with the manufacturer. We’ll recommend the correct valve — or tell you if you don’t need one.
- Media (what flows through the valve)
- Concentration, if a chemical
- Temperature range
- Operating pressure
- Connection (size and thread)
- Quantity
- Existing or competitor part number, if replacing one
Confirm this valve for my service Request volume pricing Match a competitor part number
Requests are usually answered the same business day. sales@apexflowsolutions.com
