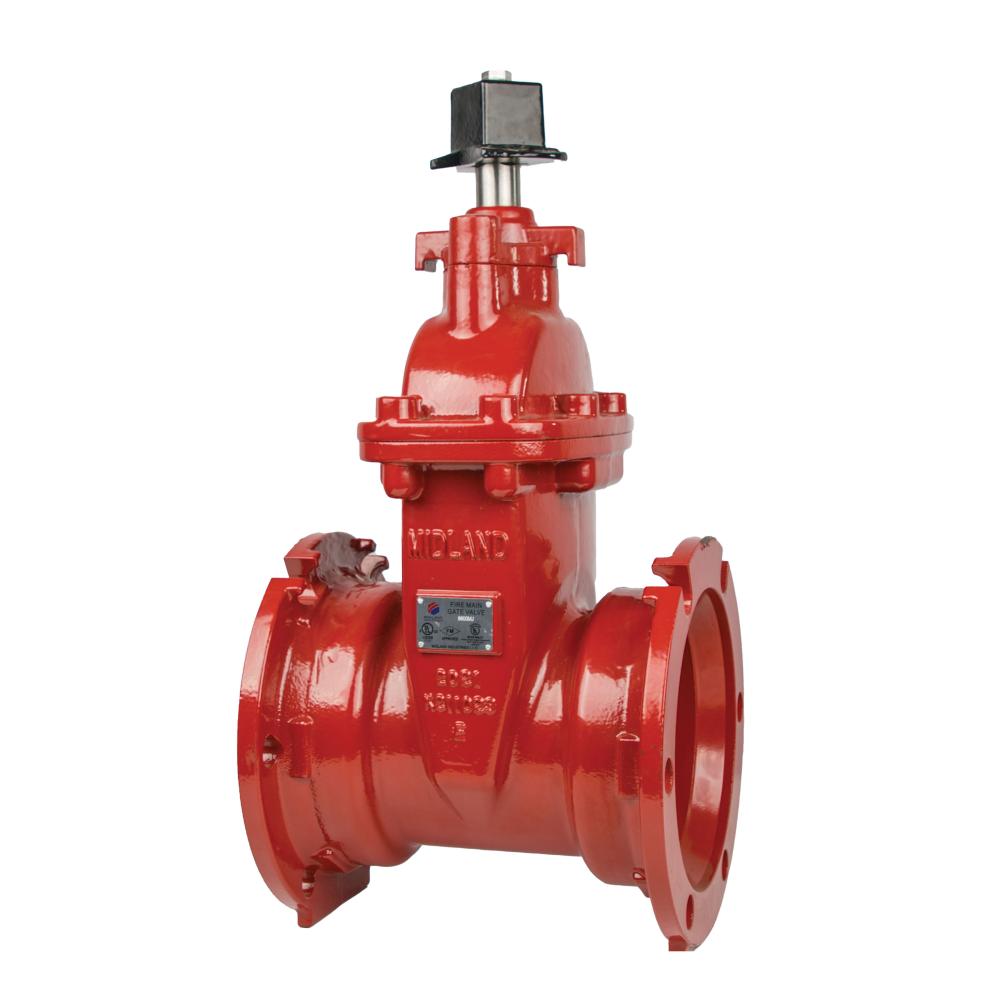

4 in. Ductile Iron Post Indicator Gate Valve, Mechanical Joint — AWWA C515 (9600MJ4PIV)
4 in. Ductile Iron Post Indicator Gate Valve, Mechanical Joint — AWWA C515 (9600MJ4PIV)
✓ In stock at our distribution warehouses — typically ships within 1–2 business days.
Freight item — ships LTL (Lower 48)- Flat-rate freight: $199 per order
- Orders $4,999+: quoted freight — priced for your dock, liftgate, and timeline
Buying several, or need a liftgate or jobsite delivery? Request an exact freight quote — usually answered the same business day.
The 4 in. Ductile Iron Post Indicator Gate Valve, Mechanical Joint — AWWA C515 (#9600MJ4PIV) is a mechanical-joint, resilient-seated ductile iron gate valve configured for post-indicator (PIV) service, giving clear above-grade open/shut indication on fire-protection mains. The wedge seats fully for tight shutoff and lifts clear for unobstructed flow.
Availability: In stock — ships in 2–3 business days.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number (MPN) | 9600MJ4PIV |
| Nominal Size | 4 in. |
| Type | Post Indicator Gate Valve |
| Body Material | Ductile Iron |
| Connection | Mechanical Joint |
| Standard | AWWA C515, UL/FM |
Key Features
- Post-indicator (PIV) configuration — above-grade open/shut indication
- Ductile Iron body, resilient-seated
- Mechanical Joint connection
- UL Listed / FM Approved for fire protection
- Meets AWWA C515
- Heavy / freight-shipped item
Common Applications
Fire protection mains and underground water service where above-grade valve-position indication is required.
