2 in. Stainless Steel Barrel Spring Check Valve
2 in. Stainless Steel Barrel Spring Check Valve
✓ In stock at the manufacturer — typically ships within 1–2 business days.
Flat-rate shipping, nationwide- Orders under $100: $9.95
- Orders $100 and up: $14.95
Some oversized or bulky items ship at a different flat rate — the exact rate is shown in your cart and at checkout.
Volume order or crossing a competitor part number? Request a quote — usually answered the same business day.

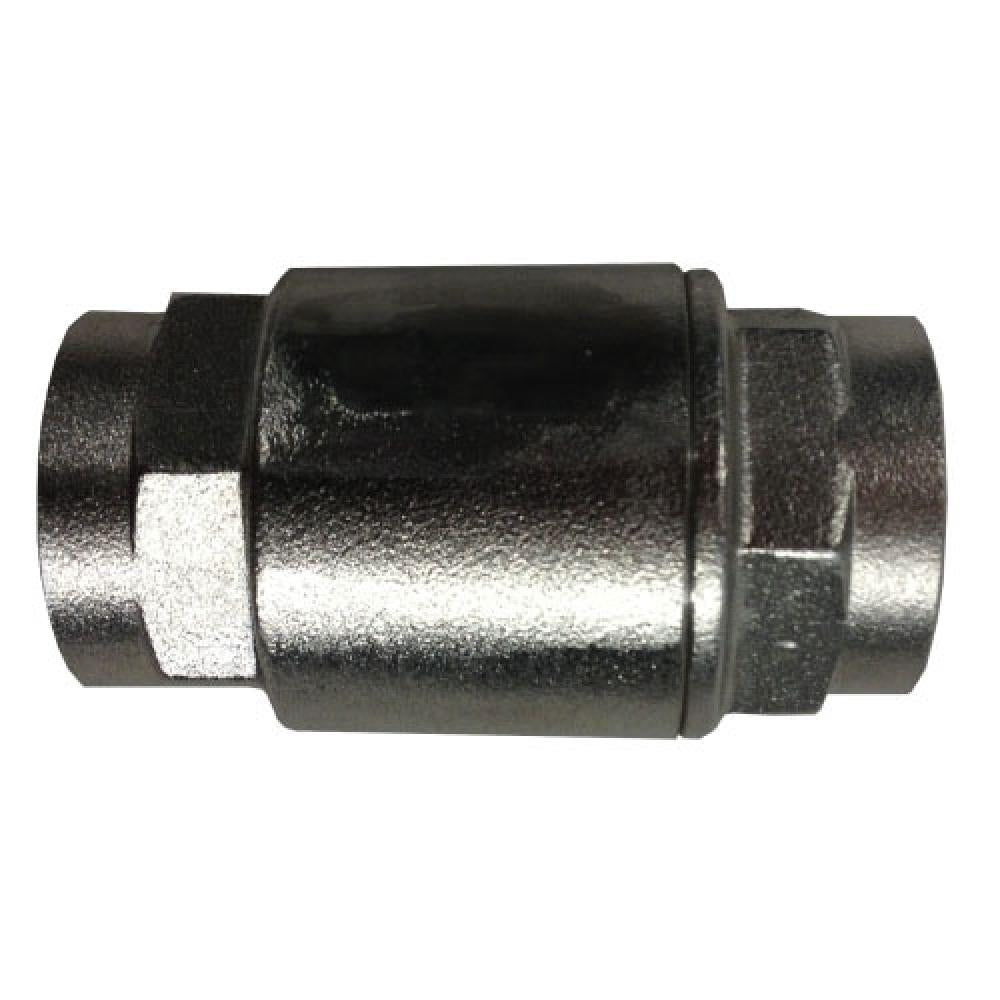

The 2 in. Stainless Steel Barrel Spring Check Valve (Midland part #949448) is a two-piece barrel-type spring check valve with a cast stainless steel body and female NPT threads on both ends.
Technical Specifications
| Part Number (MPN) | 949448 |
| Nominal Size | 2 in. |
| Body | CF8M/CF8 316 stainless steel (Midland) |
| Disc | 304 stainless steel |
| Seat | NBR |
| Seal | PTFE |
| Trim (Midland) | 304 stainless steel bolt, 316/304 stainless steel spring, CF8M/CF8 stainless steel cap |
| End connections | FPT x FPT (female NPT), thread size 2 - 11-1/2 |
| Pressure rating | 300 psi WOG (Midland product page) |
| Inlet-to-outlet length | 3.94 in. |
Values are from Midland's product page for 949448. Ask us for any value not shown, including the temperature rating for your service; Midland's catalog and product data state it differently, and we confirm it for the exact model.
Installation
Install with the flow arrow pointing downstream, and follow the manufacturer's installation instructions.
