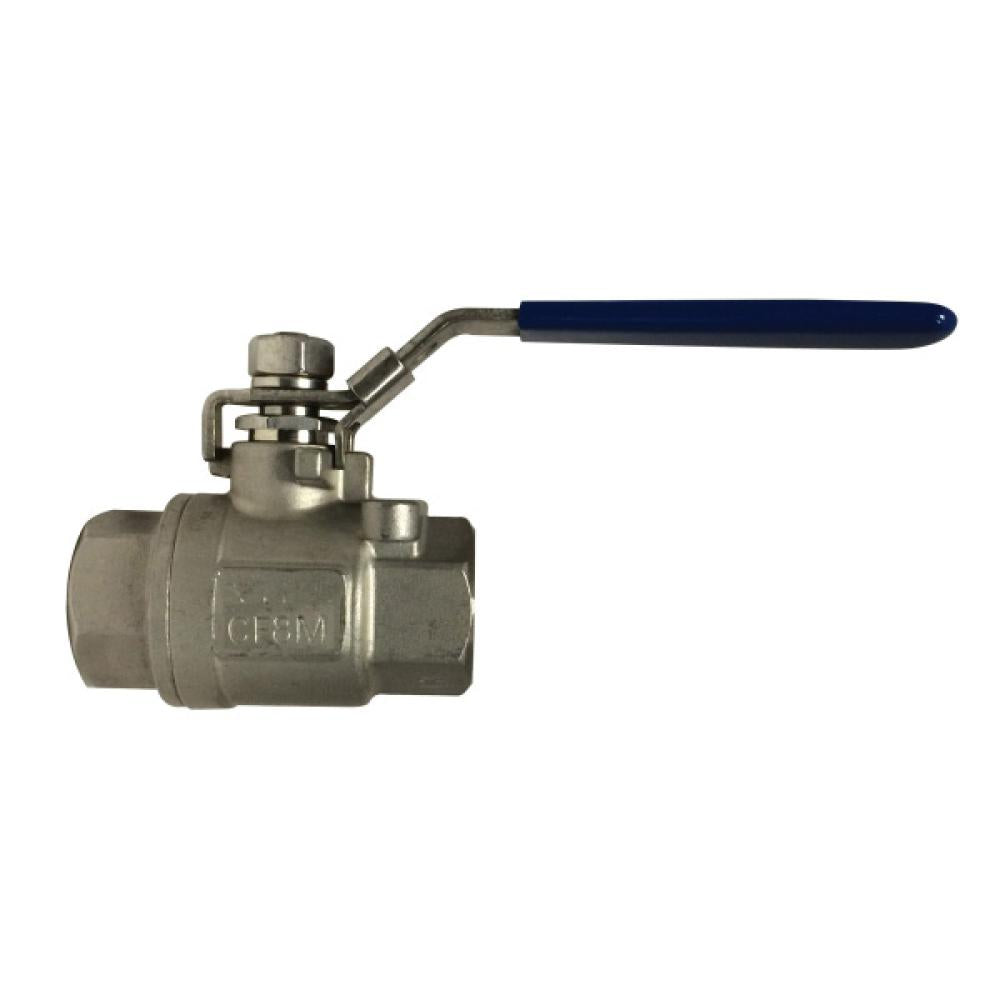

1/2 in. 2-Piece 316 Stainless Steel Full Port Ball Valve, 2000 WOG

The 1/2 in. 2-Piece 316 Stainless Steel Full Port Ball Valve (#949173) is a 2000 PSI WOG full-port valve for corrosive, high-pressure fluid service where brass or PVC won't hold up. 316 stainless body and ball, PTFE seats, and a locking quarter-turn handle make it a standard choice in chemical processing, oil & gas, steam, and high-purity lines.

Availability: In stock — ships in 2–3 business days.

Technical Specifications

Key Features

• 316 stainless body and ball — corrosion-resistant for chemical, marine, and high-purity service
• Full port — unrestricted flow, minimal pressure drop
• 2000 PSI WOG rating with a −14 to 300 °F temperature range
• PTFE seats, seals, and packing — chemical-compatible, reliable sealing
• 1/4-turn locking handle — lockout/tagout ready
• Investment-cast ASTM A351 CF8M body; blow-out-proof stem

Common Applications

Chemical processing and dosing, oil & gas, steam and condensate, high-purity and water-treatment lines, and any service where 316 stainless corrosion resistance and full-port flow are required.

Cross-References

Equivalent to industry part numbers 21, 54576, 762-8, FIG328-T-08, and SV50B76004. Searching one of those? This is your match.

Other Sizes in This Series (2-Piece 316 SS Full Port, 2000 WOG)

• 1/4 in. (949171)
• 3/8 in. (949172)
• 1/2 in. (949173) — this page
• 3/4 in. (949174)
• 1 in. (949175)
• 1-1/4 in. (949176)
• 1-1/2 in. (949177)
• 2 in. (949178)
