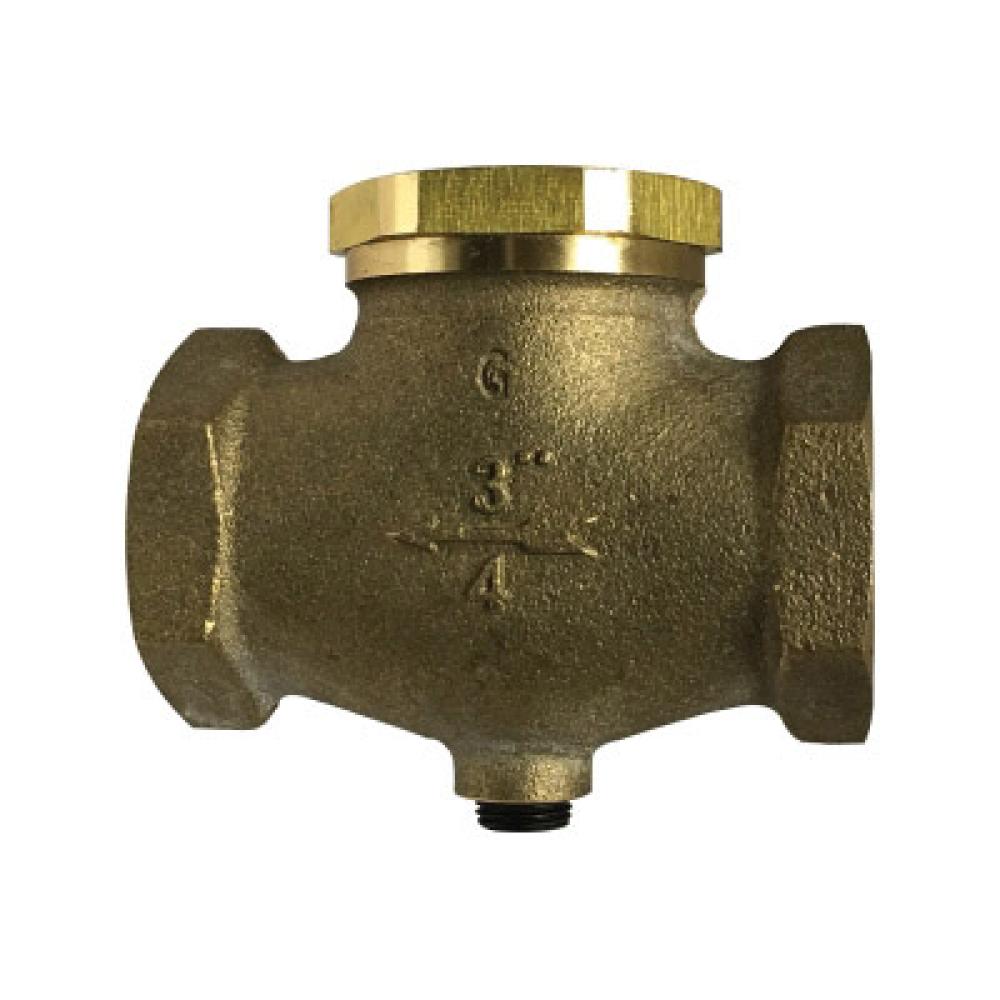

1 in. Inline Check Valve, Midland 947145
1 in. Inline Check Valve, Midland 947145
✓ In stock at the manufacturer — typically ships within 1–2 business days.
Flat-rate shipping, nationwide- Orders under $100: $9.95
- Orders $100 and up: $14.95
Some oversized or bulky items ship at a different flat rate — the exact rate is shown in your cart and at checkout.
Volume order or crossing a competitor part number? Request a quote — usually answered the same business day.
The 1 in. Inline Check Valve, Midland 947145 is a spring-loaded inline check valve with a cast bronze body and female NPT threads on both ends. Midland lists a PTFE seal and a PTFE poppet.
Technical Specifications
| Part Number (MPN) | 947145 |
| Nominal Size | 1 in. |
| Body | Cast bronze |
| Seal | PTFE |
| Trim (Midland) | Brass plug, stainless steel spring, HNBR O-ring, C360 machined brass cap, PTFE poppet |
| End connections | FPT x FPT (female NPT), thread size 1 - 11-1/2 |
| Pressure rating | 250 psi (Midland product page) |
| Port | 1/8 in. NPT unloader port |
| Inlet-to-outlet length | 3.61 in. |
| Lead content | Midland lists this model as "Contains Lead" |
Values are from Midland's product page for 947145. Ask us for any value not shown, including the temperature rating and installation position for your service.
Installation
Install with the flow arrow pointing downstream, and follow the manufacturer's installation instructions.
