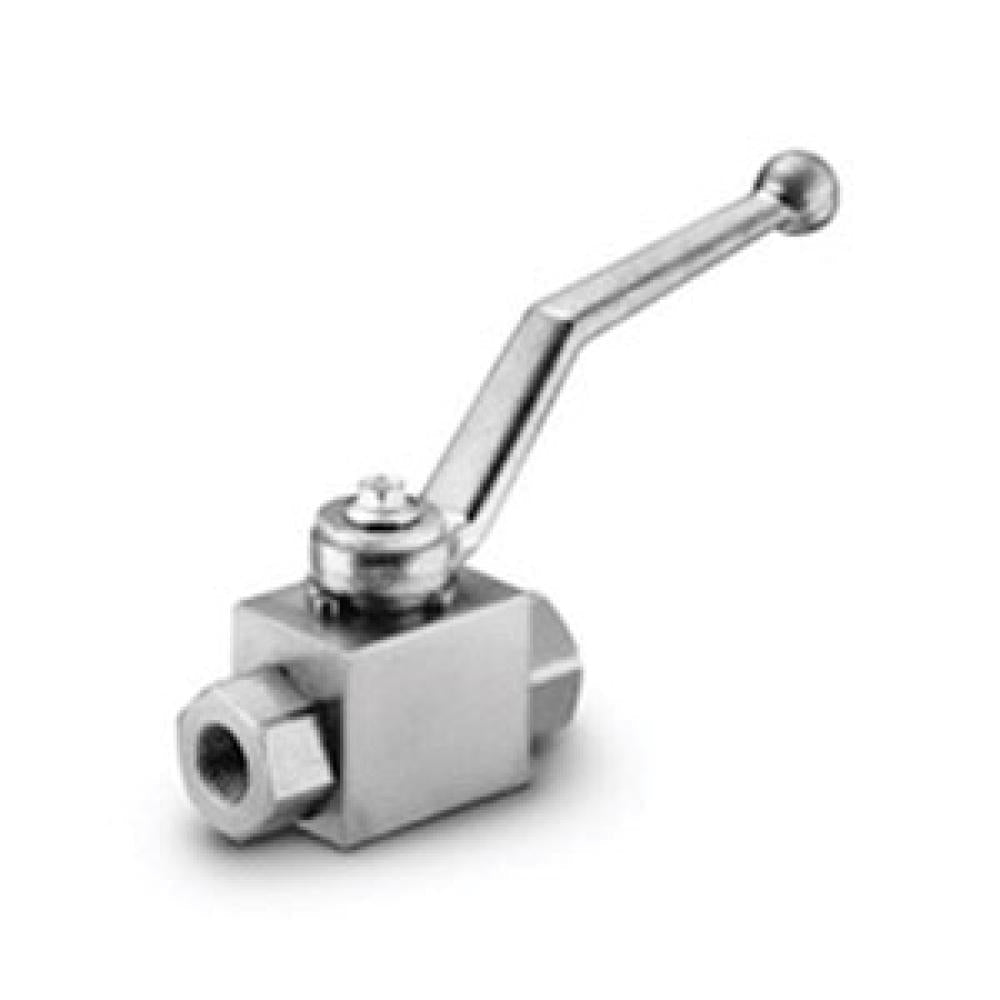

The 9/16-18 SAE 2-way high-pressure steel block valve with Viton seals (part GE206SAEV) swaps the standard Buna-N O-rings for Viton (FKM) — the seal to specify when the line carries fuels, hot oil, or media that attacks nitrile. Quarter-turn solid steel block body, zinc chromate plated, Delrin seats, SAE straight-thread O-ring boss ports that seal on the O-ring rather than the threads.
Technical Specifications
| Manufacturer Part Number (MPN) | GE206SAEV |
| Size / Thread | 9/16-18 SAE (UNF, O-ring boss) |
| Valve Type | 2-way high-pressure steel block valve, full port |
| Body | Steel, zinc chromate plated |
| Ball Seats | Delrin |
| O-Rings | Viton (FKM) |
Materials of Construction
| Body, Ball & Stem | Steel, zinc chromate plated |
| Ball Seats | Delrin (acetal) |
| O-Rings | Viton (FKM) |
Performance & Features
- Full-port bore — unrestricted flow through the open ball
- One-piece steel block body — rated for hydraulic working pressures, not plumbing-grade
- Delrin seats for high-pressure sealing with low operating torque
- Viton (FKM) O-rings for fuels, hot oil, and aggressive media
- Lever handle, quarter-turn open/close
Other Sizes in This Series
2-Way High-Pressure Steel Block Valve, SAE O-ring boss, Viton seals (7/16-20 to 1-5/16-12). Jump to another size or add it straight to your cart:
| Size / Thread | Part # | Price | Cart |
| 7/16-20 | GE204SAEV | $20.99 | Add to Cart |
| 9/16-18 (this page) | GE206SAEV | $28.99 | — |
| 3/4-16 | GE208SAEV | $34.99 | Add to Cart |
| 1-1/16-12 | GE212SAEV | $51.99 | Add to Cart |
| 1-5/16-12 | GE216SAEV | $53.99 | Add to Cart |
Typical Applications
Hydraulic power units, cylinder isolation, test stands and gauge circuits. SAE straight-thread O-ring boss ports seal on the O-ring rather than the thread — the standard choice on hydraulic manifolds and equipment ports.
Cross-References & Interchange
Replacing another brand's 9/16-18 UNF high-pressure ball valve with FKM trim? Match thread size, working pressure, and port style — or send us your part number and we will confirm the interchange. Standard hydraulic oils at normal temperatures? The 9/16-18 Buna-N version (GE206SAE) covers general service.
