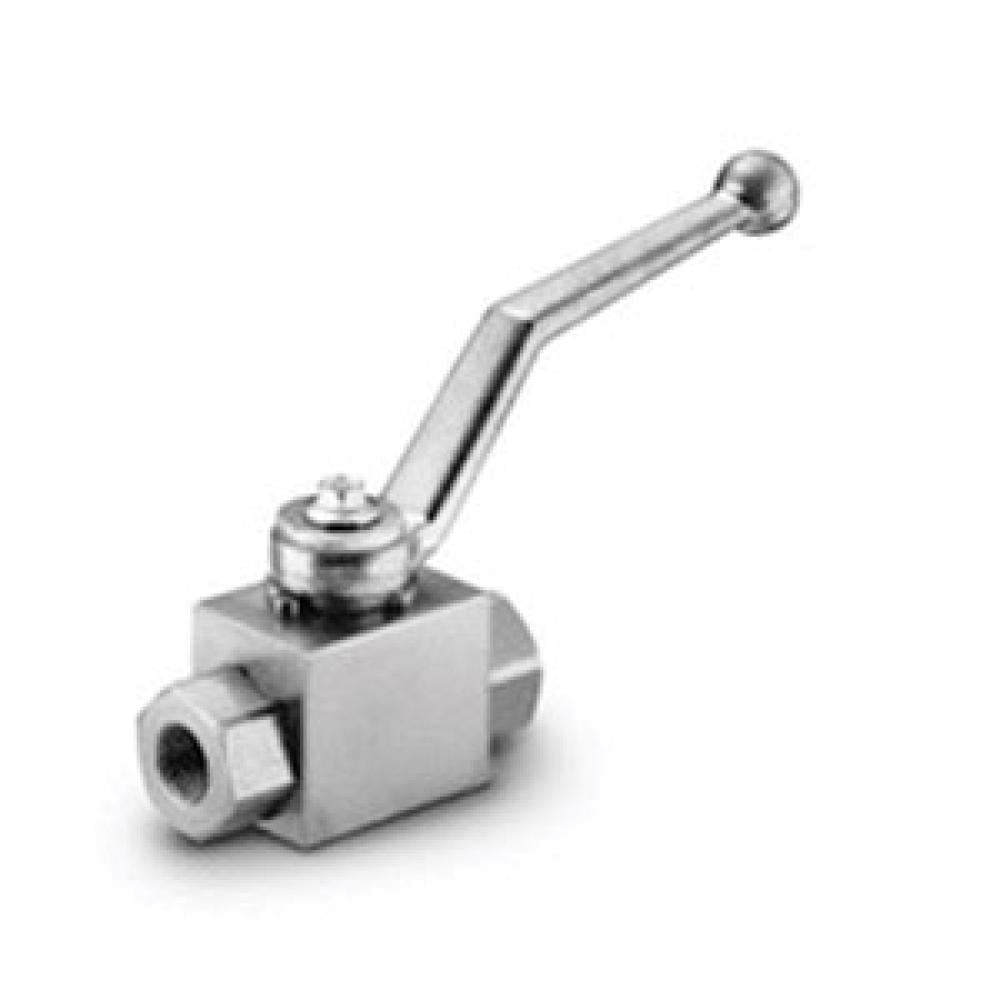

3/4" NPT 2-Way High-Pressure Steel Block Valve | GE234NPT
3/4" NPT 2-Way High-Pressure Steel Block Valve | GE234NPT
Availability & shipping
Available to ship
Shipping charges are shown at checkout. Larger sizes may ship by freight.
Key specifications
- Manufacturer
- Midland Industries
- Manufacturer part number
- GE234NPT
- Size
- 3/4 in
- Connections
- Female NPT × Female NPT (FPT × FPT)
- Body
- Steel
- Pressure rating
- 5800 PSI
Order multiple sizes
Enter quantities for any sizes, then add them to your cart together.
Available sizes typically ship within 1–2 business days. Backordered sizes may be ordered, but their shipping date is not currently confirmed.
Enter a quantity and add one size at a time.
| Size | Configuration | Availability | Price | Quantity |
|---|---|---|---|---|
| 1/4 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $48.99 | |
| 3/8 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $47.99 | |
| 1/2 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $60.99 | |
| 3/4 in. This page | Female NPT × Female NPTFPT × FPT | Available to ship | $115.99 | |
| 1 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $146.99 | |
| 1-1/4 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $155.99 | |
| 1-1/2 in. | Female NPT × Female NPTFPT × FPT | Available to order — ship date not confirmed | $180.99 | |
| 2 in. | Female NPT × Female NPTFPT × FPT | Available to ship | $309.99 |
No sizes selected
Product overview
The 3/4" NPT 2-way high-pressure steel block valve (part GE234NPT) is a quarter-turn ball valve rated 5,800 psi working pressure. It has a steel body, ball and stem, Delrin ball seats, Buna-N O-rings and female NPT threads on both ends; Midland lists this size as full port.
Technical Specifications
| Manufacturer Part Number (MPN) | GE234NPT |
| Size / Thread | 3/4" NPT |
| Valve Type | 2-way high-pressure steel block valve, full port |
| Working Pressure | 5,800 psi |
| Temperature Rating | −22°F to 212°F |
| Body | Steel, zinc chromate plated |
| Ball Seats | Delrin |
| O-Rings | Buna-N |
Materials of Construction
| Body | Steel, zinc chromate plated |
| Ball | Steel (plating: spec sheet available on request) |
| Stem | Steel |
| Ball Seats | Delrin (acetal) |
| O-Rings | Buna-N (nitrile) |
Performance & Features
- Full-port bore, per the Midland catalog and product listing
- Steel block body, zinc chromate plated (Midland printed construction)
- Delrin (acetal) ball seats
- Buna-N (nitrile) O-rings
- Quarter-turn handle
Service suitability
Media, service and application suitability are not published by the manufacturer for this valve. Tell us your fluid, temperature and working pressure and we will confirm suitability before you order.
Manufacturer-listed interchange numbers
- BKH-34-NPT-1123-1
- GE2-34-NPT
Manufacturer-listed references; confirm dimensions and service requirements before substitution. Replacing one of these? Send us the part number and we will confirm the match.
Need to divert flow between two circuits instead of just isolating one? The 3/4" NPT 3-way L-port version switches one inlet between two outlets.
Compare related series
Documents and technical resources
Confirm this valve for your service
Send us the details below and the Apex Flow Solutions technical desk will check suitability with the manufacturer. We’ll recommend the correct valve — or tell you if you don’t need one.
- Media (what flows through the valve)
- Concentration, if a chemical
- Temperature range
- Operating pressure
- Connection (size and thread)
- Quantity
- Existing or competitor part number, if replacing one
Confirm this valve for my service Request volume pricing Match a competitor part number
Requests are usually answered the same business day. sales@apexflowsolutions.com
