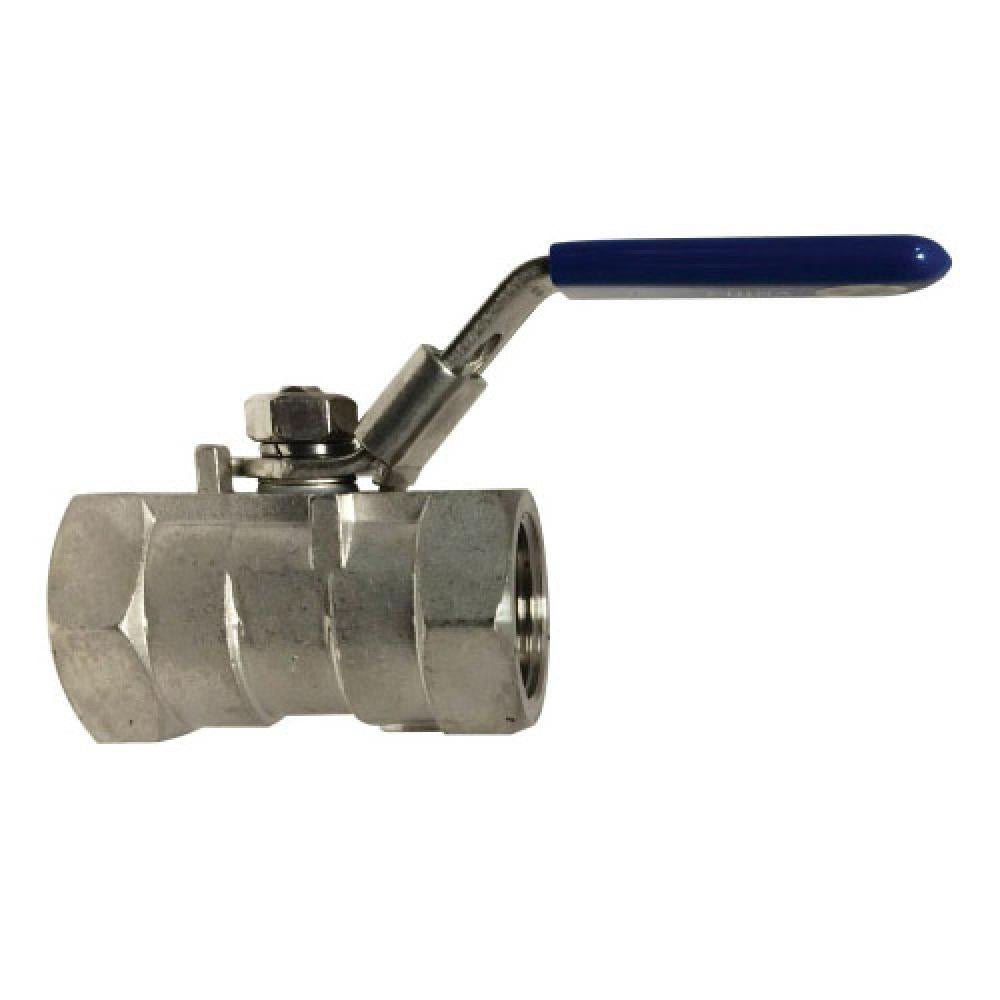

1-1/2 in. 1000 PSI 1-Piece 316 Stainless Steel Ball Valve
1-1/2 in. 1000 PSI 1-Piece 316 Stainless Steel Ball Valve
The 1-1/2 in. 1-Piece 316 Stainless Steel Ball Valve (#949107) is a compact, economical 1000 PSI WOG quarter-turn valve for corrosive fluid service where brass or PVC won't hold up. Its one-piece 316 stainless body with PTFE seats and a locking handle makes it a reliable on/off valve for chemical, water, oil, and gas lines.
Availability: In stock — ships in 2–3 business days.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number (MPN) | 949107 |
| Nominal Size | 1-1/2 in. |
| Valve Design | 1-Piece |
| Body / Ball Material | 316 Stainless Steel |
| Material Standard | ASTM A351 CF8M |
| Stem Material | AISI 304 Stainless Steel |
| Seat / Seal Material | PTFE |
| Packing Material | AISI 304 SS ring |
| Trim Material | PTFE thrust washer |
| Connection Type | FPT x FPT (female NPT) |
| Thread Size | 1-1/2 - 11-1/2 NPT |
| Port Type | Standard Port |
| Pressure Rating | 1000 PSI WOG |
| Temperature Rating | −14 °F to 300 °F |
| Operator | 1/4-Turn Locking Handle (304 SS w/ vinyl insulator) |
| Overall Length | 3.26 in. |
| Top to Inlet Center | 2.76 in. |
| Standards / Approvals | ANSI B2.1, API 598 |
| Cross-References | 1-1/2 50M76, 15329, 46325K33, 760T07, SC101M, V-003P 1-1/2 |
Key Features
- One-piece 316 stainless body — corrosion-resistant and compact
- 316 stainless ball with PTFE seats and seals — reliable, chemical-compatible sealing
- 1000 PSI WOG rating; −14 to 300 °F temperature range
- 1/4-turn locking handle — lockout/tagout ready
- Investment-cast ASTM A351 CF8M body; meets ANSI B2.1 and API 598
- Economical on/off valve for tight installations
Common Applications
On/off isolation in chemical processing, water treatment, oil & gas, and general industrial lines where 316 stainless corrosion resistance is required in a compact, cost-effective valve.
Cross-References
Equivalent to industry part numbers 1-1/2 50M76, 15329, 46325K33, 760T07, SC101M, and V-003P 1-1/2. Searching one of those? This is your match.
