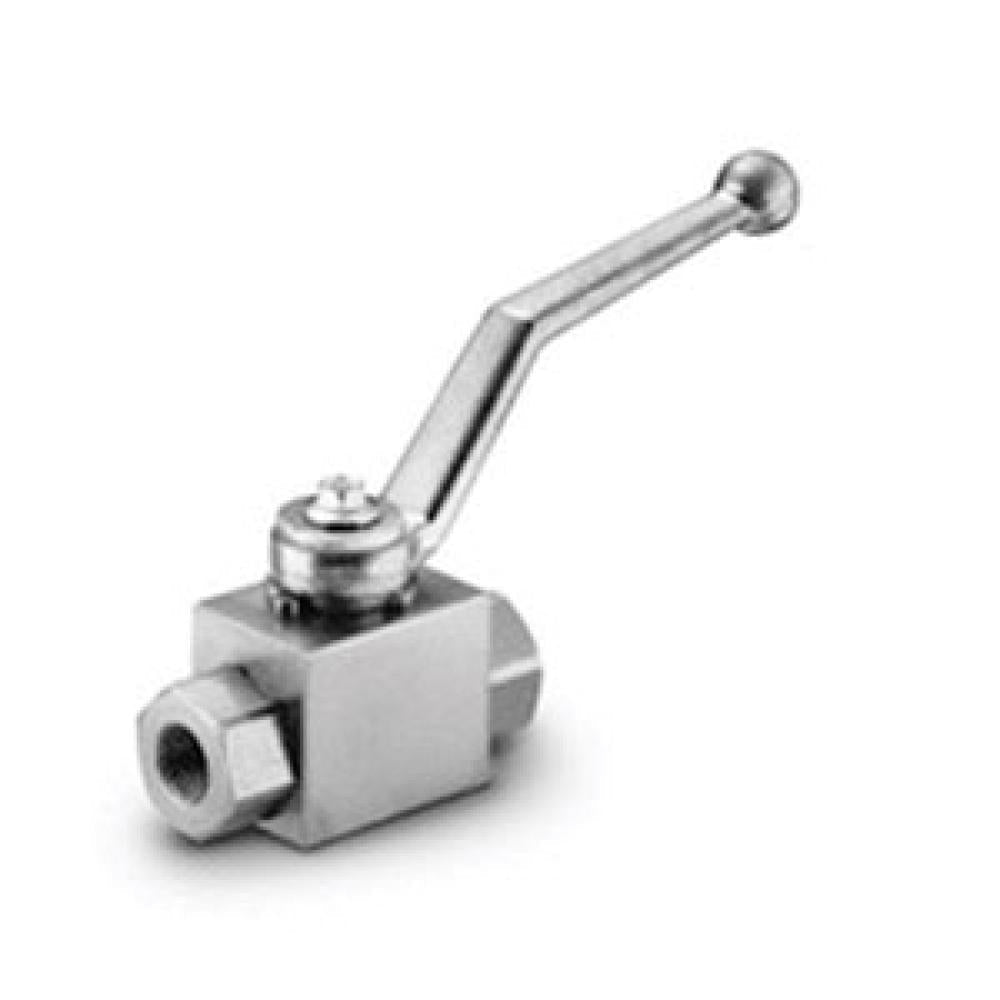

The 2" NPT 2-way high-pressure steel block valve with Viton seals (part GE220TSAEV) swaps the standard Buna-N O-rings for Viton (FKM) — the seal to specify when the line carries fuels, hot oil, or media that attacks nitrile. Quarter-turn solid steel block body, zinc chromate plated, with Delrin seats and female NPT threads both ends.
Technical Specifications
| Manufacturer Part Number (MPN) | GE220TSAEV |
| Size / Thread | 2" NPT |
| Valve Type | 2-way high-pressure steel block valve, full port |
| Body | Steel, zinc chromate plated |
| Ball Seats | Delrin |
| O-Rings | Viton (FKM) |
Materials of Construction
| Body, Ball & Stem | Steel, zinc chromate plated |
| Ball Seats | Delrin (acetal) |
| O-Rings | Viton (FKM) |
Performance & Features
- Full-port bore — unrestricted flow through the open ball
- One-piece steel block body — rated for hydraulic working pressures, not plumbing-grade
- Delrin seats for high-pressure sealing with low operating torque
- Viton (FKM) O-rings for fuels, hot oil, and aggressive media
- Lever handle, quarter-turn open/close
Typical Applications
Hydraulic power units, test stands and gauge isolation, high-pressure fluid-power and oil lines, mobile and industrial hydraulic circuits where a plumbing-grade ball valve cannot take the pressure. NPT threads suit general high-pressure pipe work.
Cross-References & Interchange
Standard hydraulic oils at normal temperatures? The 2" Buna-N version (GE22TNPT) covers general service. For other line sizes in NPT, see the 2-way NPT series.
